Part Number : CCSD-CURD, Control Unit for the CCS 1000 Digital Discussion System, has MP3 recording and DAFS, provides power for the Discussion Devices, enables peripheral equipment to be connected to the discussion system
Compact yet versatile
The Control Unit is the main component of the CCS 1000 Digital Discussion System. It supplies DC power to all connected Discussion Devices and monitors and controls the discussion system.
Touch‐button control allows for easy configuration and operation of the unit, while intuitive LED indicators give a clear indication of the system settings.
Conveniently positioned connections at the rear of the unit enable peripheral equipment to be connected to the discussion system, such as audio equipment and Bosch HD Conference Domes.
Intuitive web browser control allows basic and advanced system settings to be easily viewed and changed, as required.
Plug-and-play functionality The plug-and-play functionality of the Control Unit allows Discussion Devices and system cameras to be conveniently connected to and removed from the system as required. A power down or restart of the system is not necessary, which ensures for fast installation and reconfiguration times.
Web browser control Basic and advanced system settings, including microphone management and recording options, can be easily viewed and managed/configured by using a web browser in combination with a tablet, laptop or PC. Changes made in the web browser are automatically updated in the Control Unit and vice‐versa. An option in the web browser allows the Control Unit and connected devices to be automatically shut down for energy saving purposes. To prevent unauthorized access to system settings, separate login rights are available for operators and technicians.
Open microphone control The maximum number of microphones that can be activated by pressing the microphone buttons on the Discussion Devices can be selected with the ‘Number of Open Microphones’ (NOM) button on the Control Unit. A maximum of four microphones can be selected on the Control Unit. This can be further extended to 10 microphones in the web browser.
Discussion control One of the following microphone modes can be selected by pressing the ‘Microphone-mode’ button on the front of the Control Unit:
- Open mode Participants can speak by pressing their microphone buttons. When the maximum number of open microphones is reached, the next participant that presses their microphone button is added to a waiting list. The first participant in the ‘waiting list’ is allowed to speak when an activated microphone is disabled.
- Override mode Participants can override each other by pressing their microphone buttons. When the maximum number of open microphones is reached, the next participant that presses their microphone button will deactivate the microphone that has been activated for the longest time (the chairperson’s microphone is not included in the number of open microphones and, therefore, cannot be overridden by a participant).
- Voice activation mode Participants can activate their microphones by speaking into them. A microphone can be temporarily muted by pressing and holding down the microphone button.
- Push to talk (PTT) mode Participants can speak by pushing and holding in their microphone buttons. The microphone is deactivated when the microphone button is released. The maximum number of participants that can speak is determined by the number of open microphones.
Interface for peripheral equipment The Control Unit enables the following equipment to be connected to the CCS 1000 Digital Discussion System:
System cameras – for giving a clear visual overview of the proceedings. A maximum of six Bosch HD Conference Dome cameras can be connected to the system with native support (the camera presets can be configured in the web browser).
External wired or wireless microphone – to allow a guest speaker or an audience to participate in a discussion
Sound reinforcement system – for transmitting the proceedings to an audience in the same room or an adjacent room
Audio equipment – for broadcasting music through the loudspeakers of the discussion system
External audio processor – for modifying the floor signal distributed to the participant loudspeakers and headphones (i.e. equalizing)
Telephone coupler – to allow a remote participant to join a discussion via a telephone/video connection
External recorder – for recording and playing back discussions
Computer (connected via micro USB connector at rear of Control Unit) – for transferring recordings (discussions) from the internal memory of the Control Unit

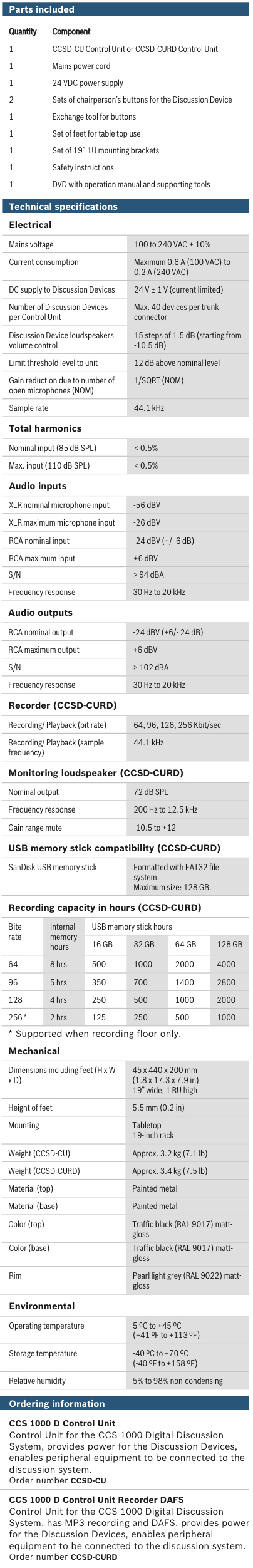

Built-in MP3 recorder (CCSD-CURD only) The built‐in recorder can record discussions in the MP3 format to the internal memory or a USB memory stick with a maximum capacity of 128 GB, which can store up to 4,000 hours discussion. To ensure that discussions are manageable, recordings are divided into files of one hour’s duration containing the date and time of recording.
Internal memory – recordings are automatically saved in the internal memory unless a USB memory stick is connected to the USB connector at the front of the Control Unit. The internal memory can record up to 8 hours discussion.
USB memory stick – recordings are automatically saved to a USB memory stick when it is connected to the Control Unit. A USB memory stick of 128 GB can record up to 4,000 hours discussion. LED indicators inform users when data is being recorded to the internal memory or USB memory stick. Three short beeps and a red flashing LED indicate when 5 minutes of recording are left. A long beep and a red/green flashing LED indicate when it is not possible to record a discussion (i.e. internal memory full and USB memory stick not connected to the Control Unit, USB memory stick full or damaged).
Built-in monitor loudspeaker (CCSD-CURD only) The built-in loudspeaker and headphone socket allows for: - live monitoring of a meeting from the CCSD-CURD Control Unit - prelistening of audio files before replaying them to the Floor.
Built-in Digital Acoustic Feedback Suppression (DAFS) (CCSD-CURD only) The built-in Digital Acoustic Feedback Suppression (DAFS) feature suppresses acoustic feedback (also known as ‘howling’ or ‘Larsen effect’). This improves speech intelligibility by allowing the speaker volume to be set as loud as required without any risk of acoustic feedback.
